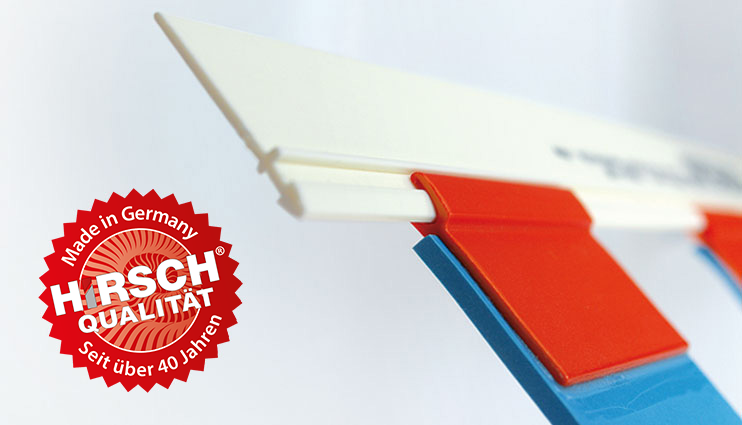

Connecting Profile and Tension Band
To fix mountings flexible, 100% metal free
100% quality check of:
- tensile strength
- fracture sites
- size accuracy
- rubber-plastic bonding
Connecting Profile for clicheé extensions
- The groove-tongue-profile is optimal for flexible clicheé extensions
- For use in the pre-mount-system, in case of foil overlength
- An optimised tolerance rate between the strips ensures that 3 meter profiles can be pushed into each other without reducing the tensile strength.
- Uniform tightening system applicable
| PN | Description | PU |
|---|---|---|
| 200 300 VN | Connecting Profile groove 3.6 mm thickness, 18 mm stitching edge, 3 m, red | 250 |
| 200 300 VF | Connecting Profile tongue 3.6 mm thickness, 18 mm stitching edge, 3 m, white | 250 |
* not available in GB
Special Series 1000 for Flat Mounting without Metal
Classic clichés glued
- rubber thickness about 1.7 mm
- For use with connecting profile 200 300 VF, see above
- All tension bands available in 1.2 mm thickness
1000
| Length* / mm / inch | PN | Length* / mm / inch | PN |
|---|---|---|---|
| 55 / 2.15" | 1020 | 230 / 9" | 1031 |
| 75 / 3" | 1021 | 250 / 9.5" | 1032 |
| 90 / 3.5" | 1022 | 260 / 10.3" | 1033 |
| 100 / 4" | 1023 | 280 / 11" | 1034 |
| 110 / 4.3" | 1024 | 300 / 12" | 1035 |
| 125 / 5" | 1025 | 330 / 13" | 1036 |
| 150 / 6" | 1026 | 350 / 14" | 1037 |
| 160 / 6.3" | 1027 | 380 / 15" | 1038 |
| 180 / 7" | 1028 | 400 / 15.7" | 1039 |
| 200 / 8" | 1029 | 450 / 17.7" | 1040 |
| 210 / 8.3" | 1030 | 460 / 18.1" | 1041 |
* Measurements correspond to the rubber length!
